About this item

• Test Flow, Pressure and Temperature in same time
• Max Pressure ： 6000PSI，Max Flow UP to 400L/100GPM
• Two-way flow test
• Easy to USE， Easy to Carry
• Power by 9V battery
•

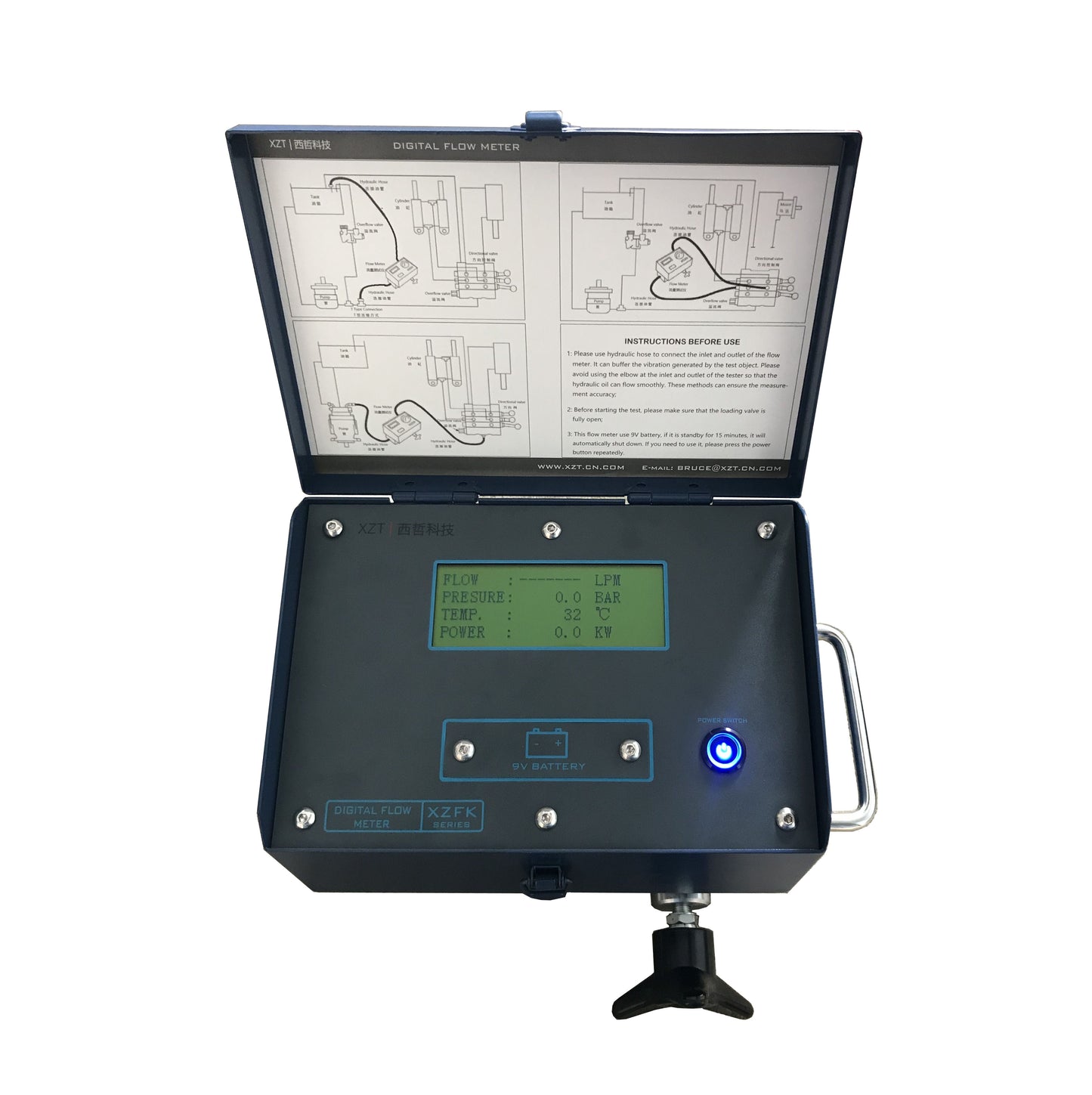

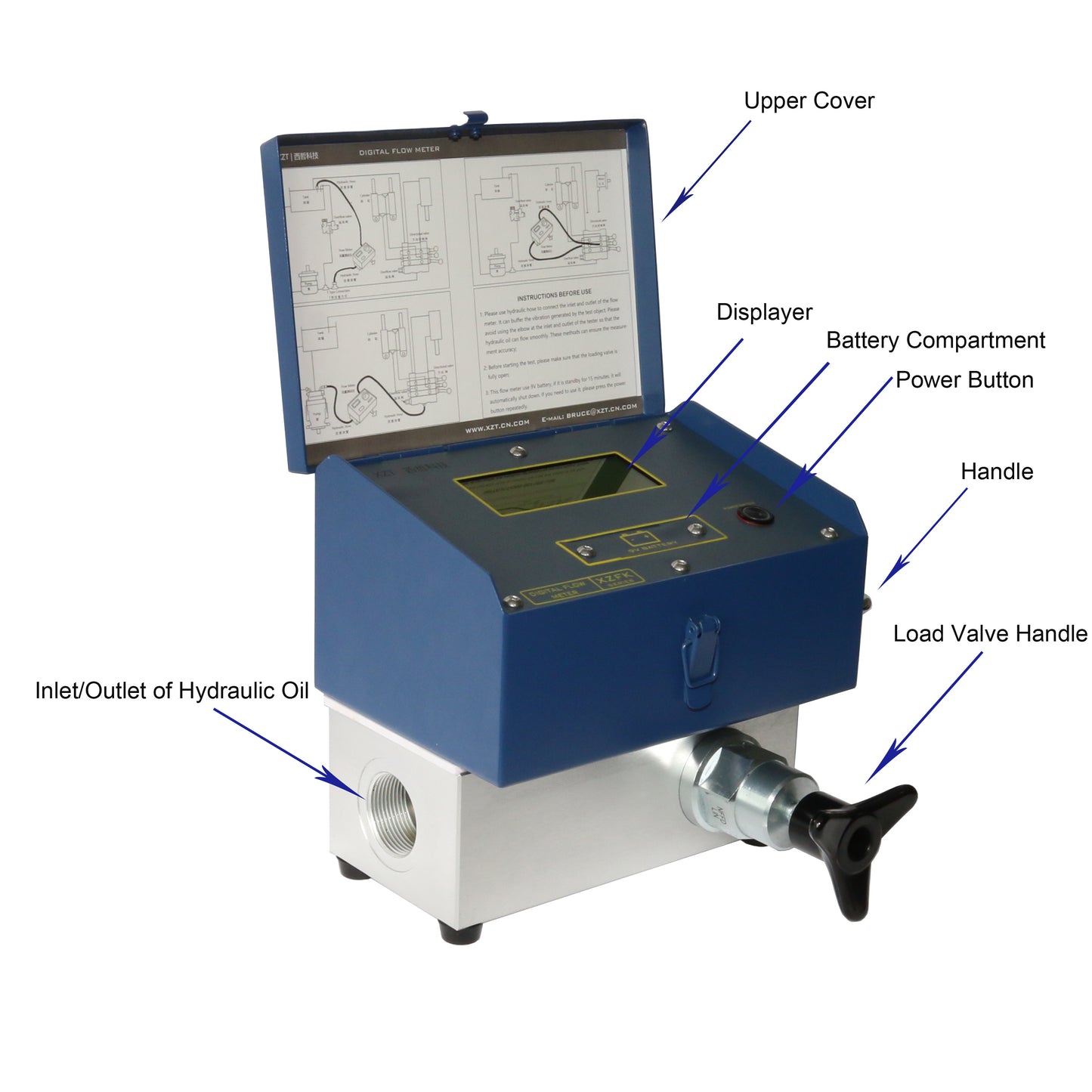

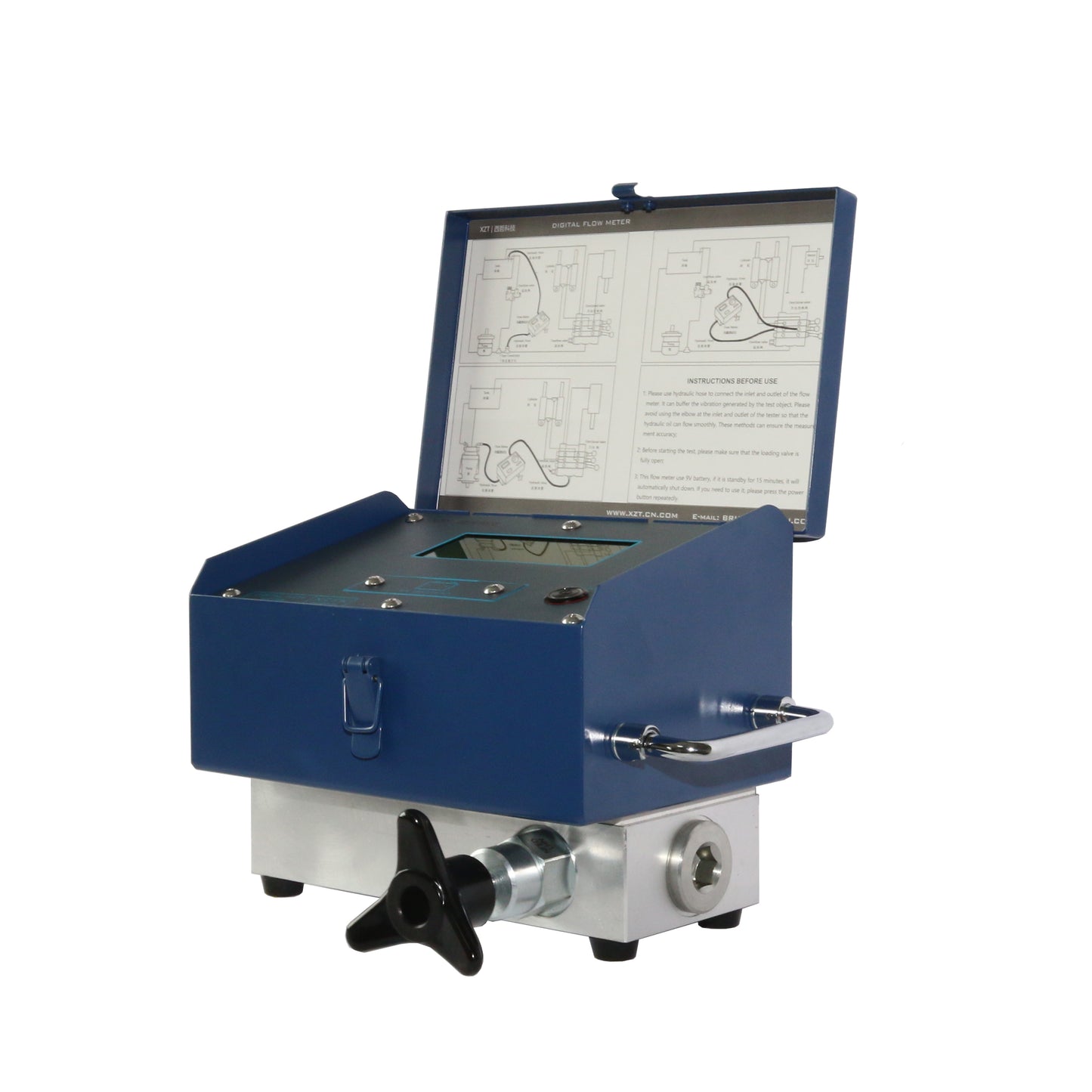

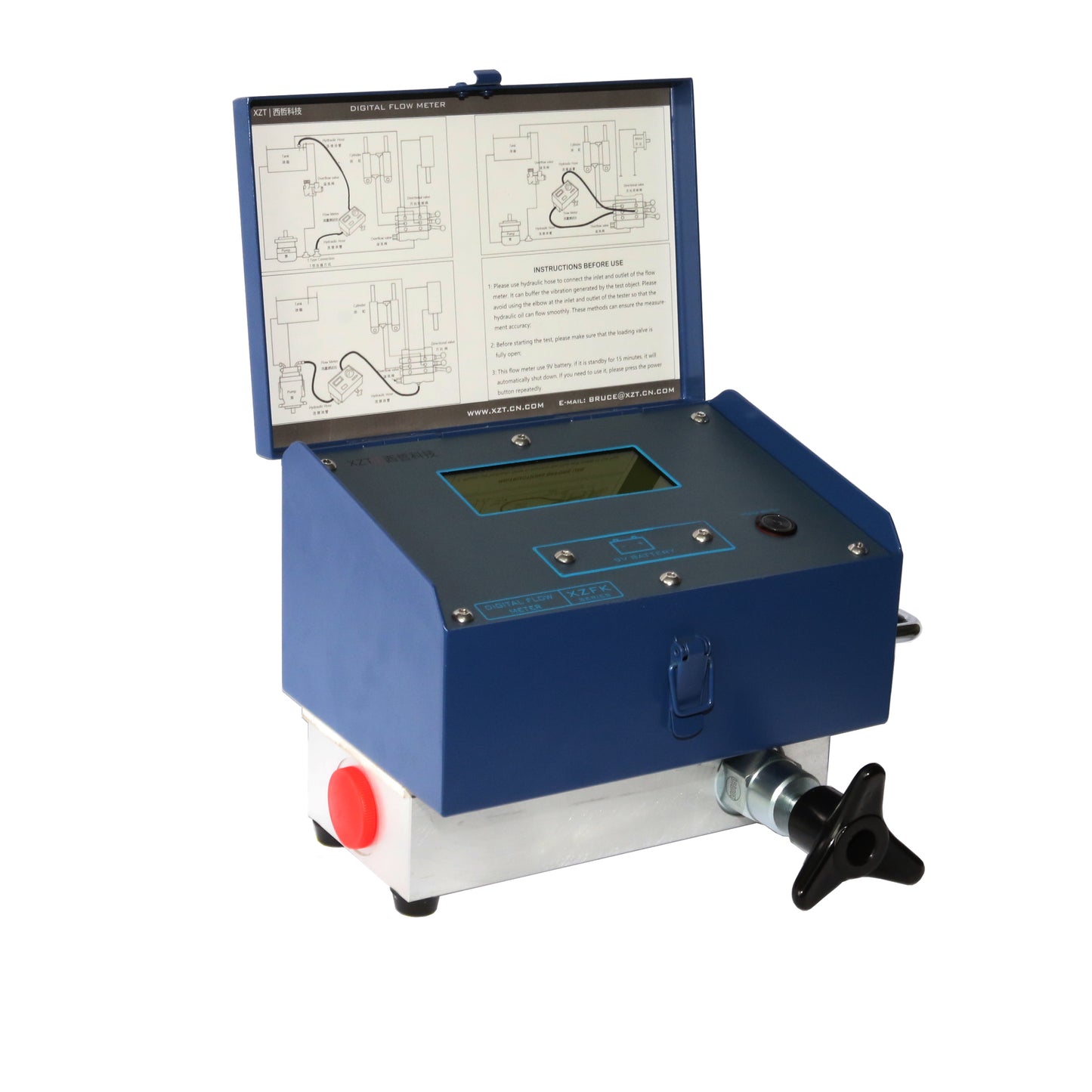

XZFK Series 420BAR Digital Hydraulic Flow Meter
This tester can test Flow, Pressure and Temperature in same time
- Up to 400 LPM (suit XZFK-404)
       or 800LPM (Suit XZFK-408)
- Up to 420 BAR/42MPa
- Two-way flow test
- Bi-Directional
- Simplified Controls
- Compact structure
- Power by 9V battery

Features
O ACCURATE measurement of flow, pressure and temperature.
O SAFE to use in both directions of flow. Interna oil by-pass protects system and operator against overpressure.
O Bi-DIRECTIONAL for unrestricted connection and simplified testing.
O FAST checks on pumps, motors, valves cylinders, hydrostatic transmissions.O EASY to operate controls. Simply "Switch on" and connect into the hydraulic system.
O ECONOMICAL low power consumption from standard battery. Automatic "Power Off" feature
O PORTABLE AND LEIGHTWEIGHT with angled case for easier viewing and cleaning.

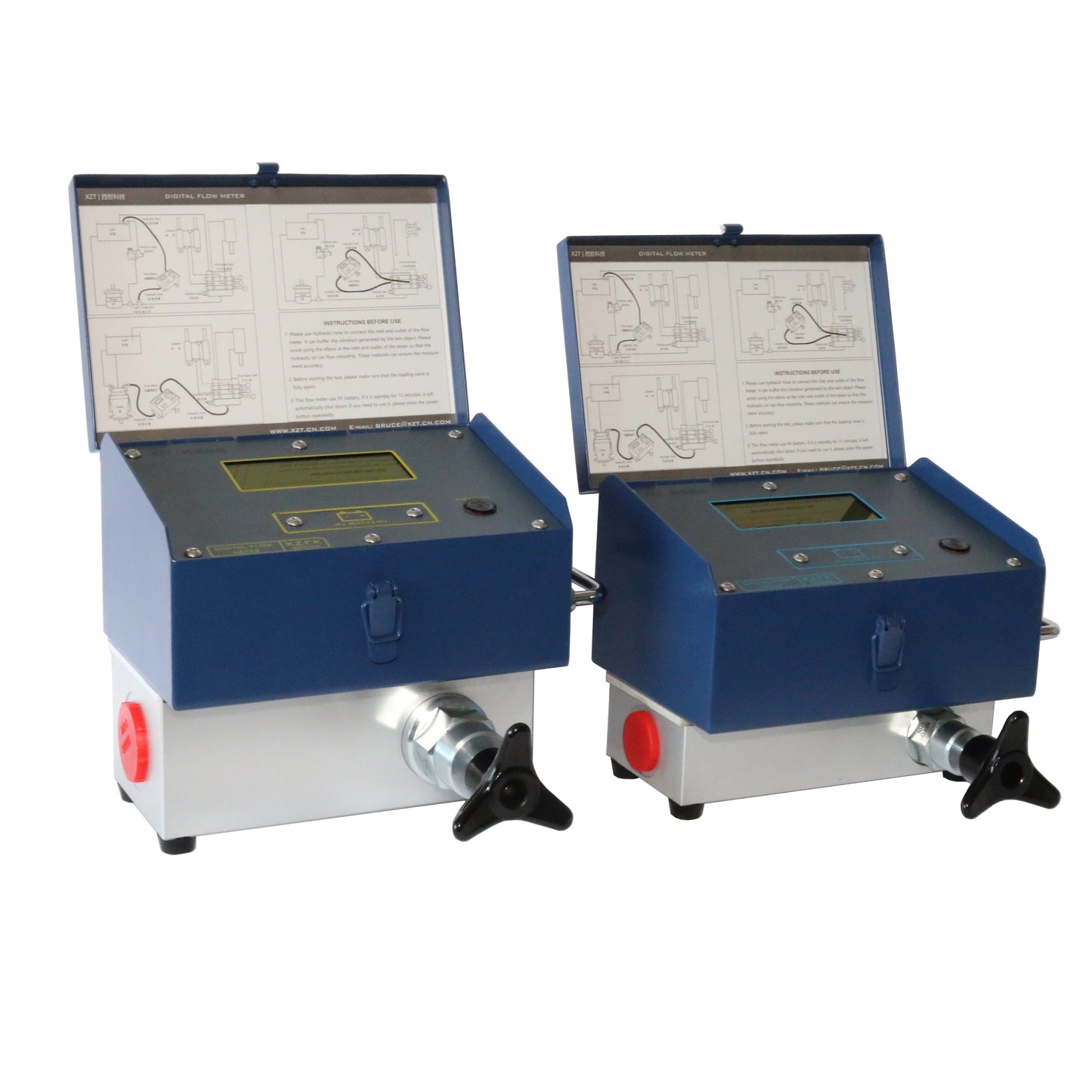

Measure Dimension：
XZTK-404

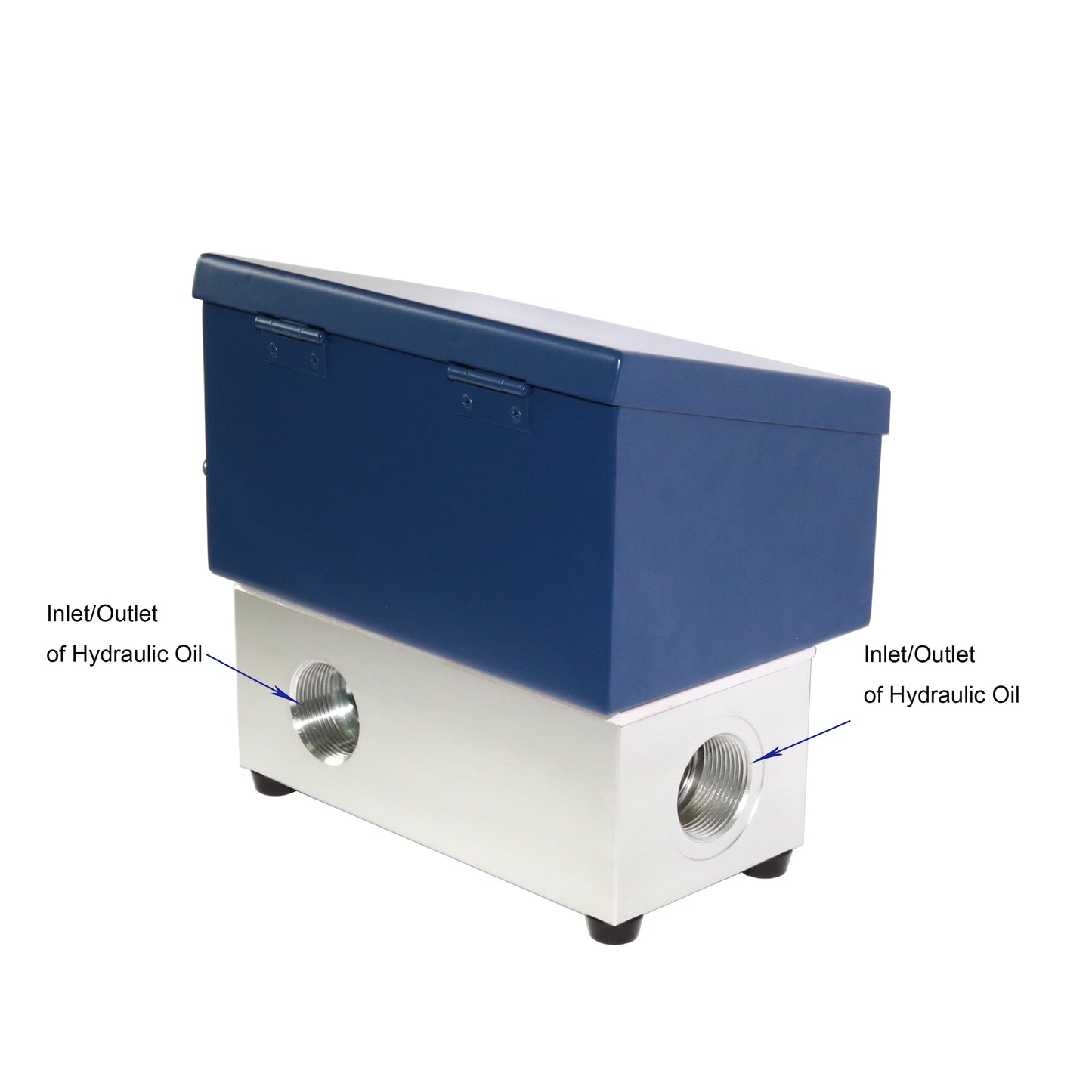

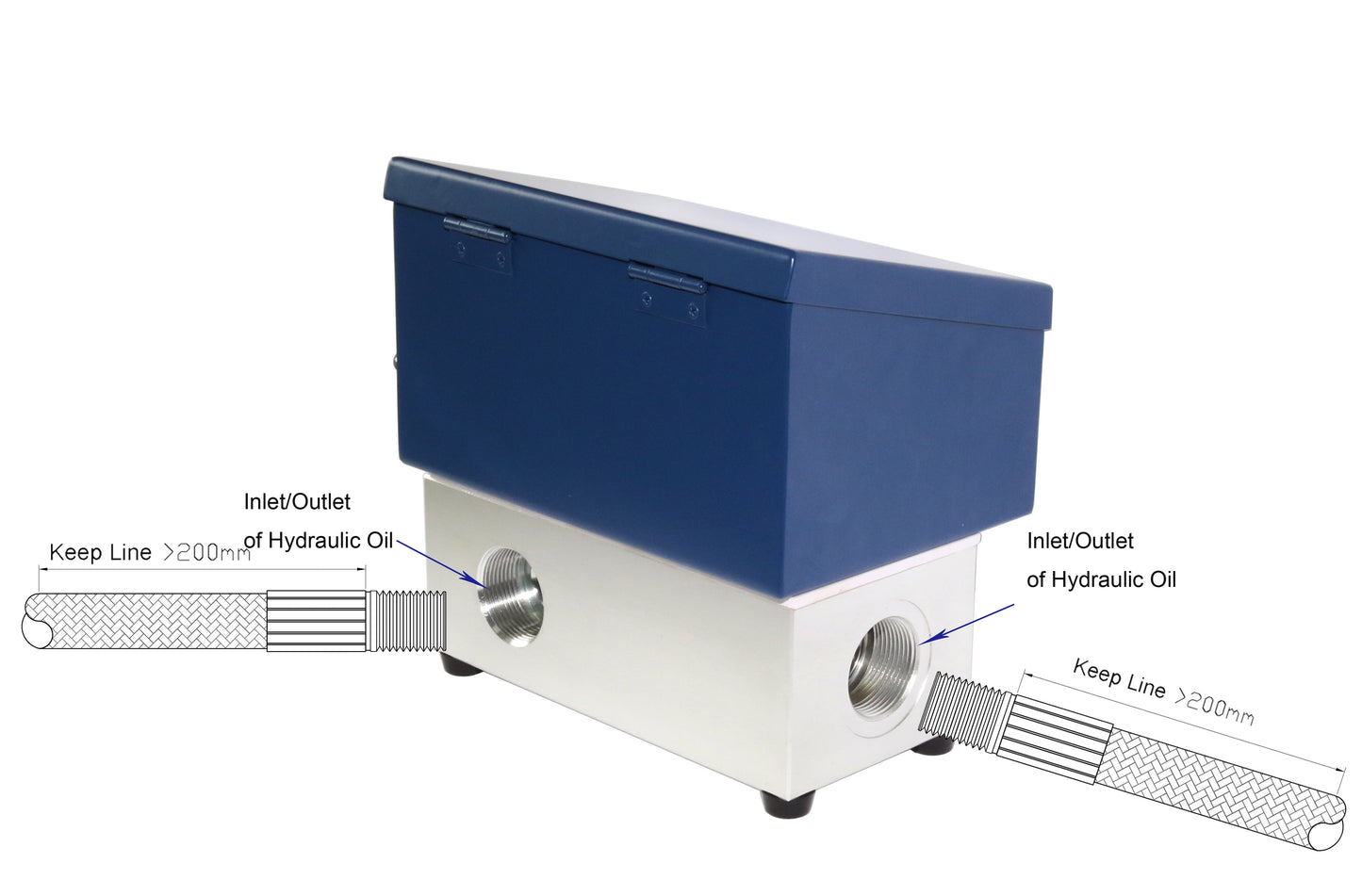

1：thread of Inlet / Outlet is BSP 1“/G 1“ female
2：Net Weight： 6Kg
3：250*200*200 mm；
XZTK-408
1：thread of Inlet / Outlet is BSP 1-1/4“/G 1-1/4“ female
2：Net Weight： 9.5Kg
3：250*230*200 mm；
