XZT TOOL

XZT 60K Digital Hydraulic Pressure Test Coupling Kit,Pressure Gauge,Test Hose,Test Point for Excavator Construction Machinery Repair

Regular price $399.00 USD
Regular price $799.00 USD Sale price $399.00 USD
Sale Sold out

About this item

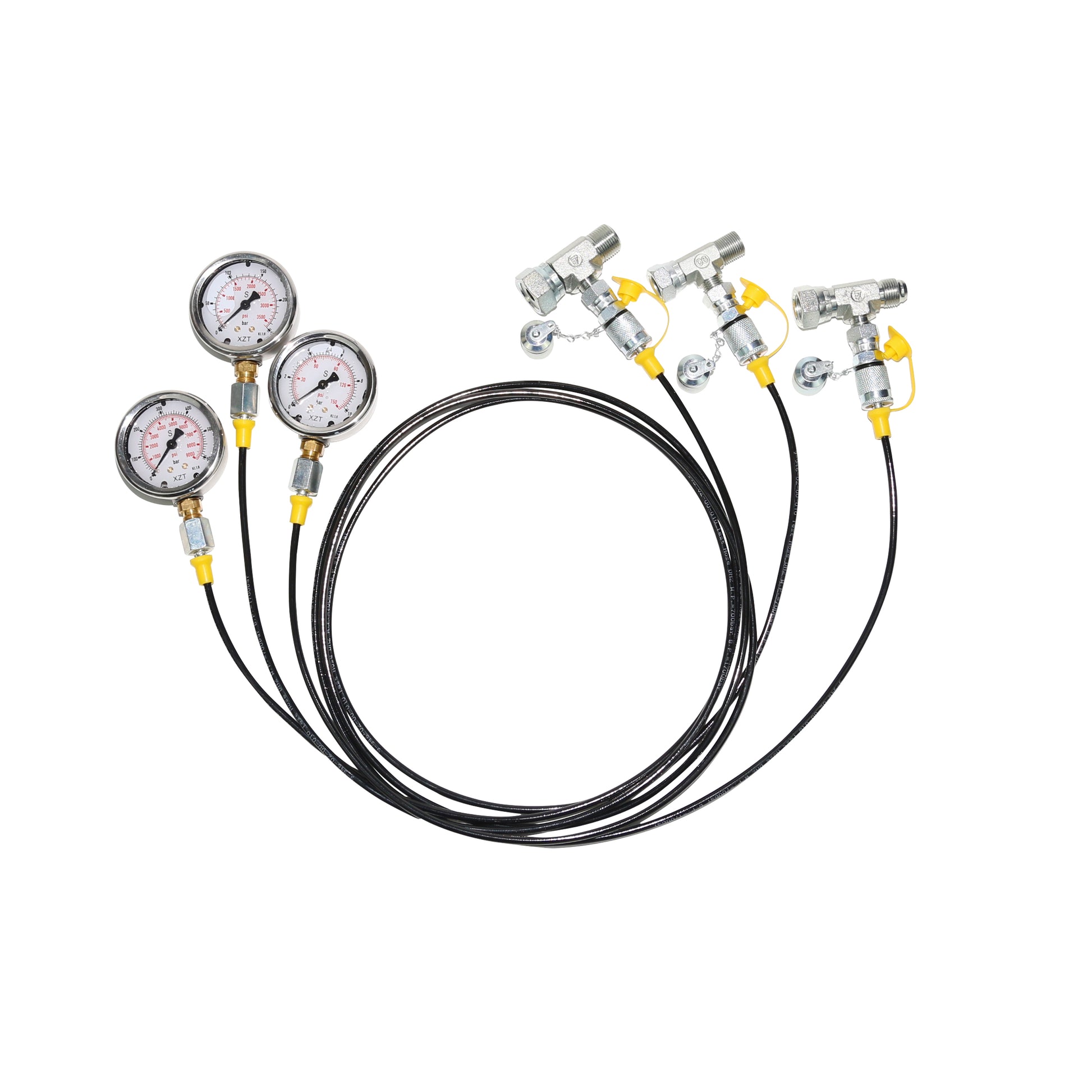

  • 5 Level Analog pressure gauge,5FT test hose *4; 10FT test hose *1,11 type test couplings, 3 type quick connectors
  • 6 type Hydraulic Run Tees for most brand excavator and construction machine
  • Easy to USE, easy to carry
  • can test hydraulic pressure for excavator ,construction machine, hydraulic system

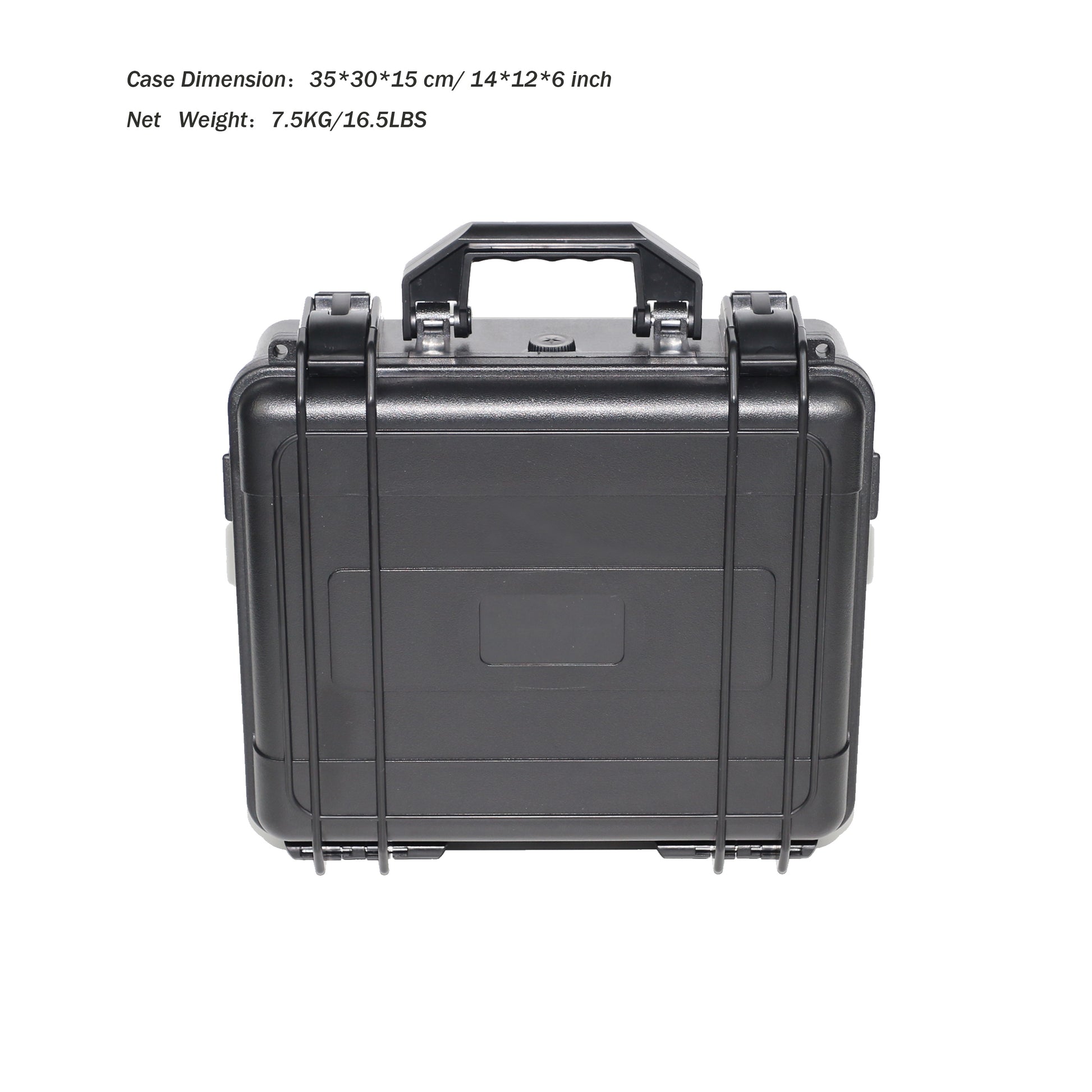

  • Packing Weight is 16.5 LBS



Product Description

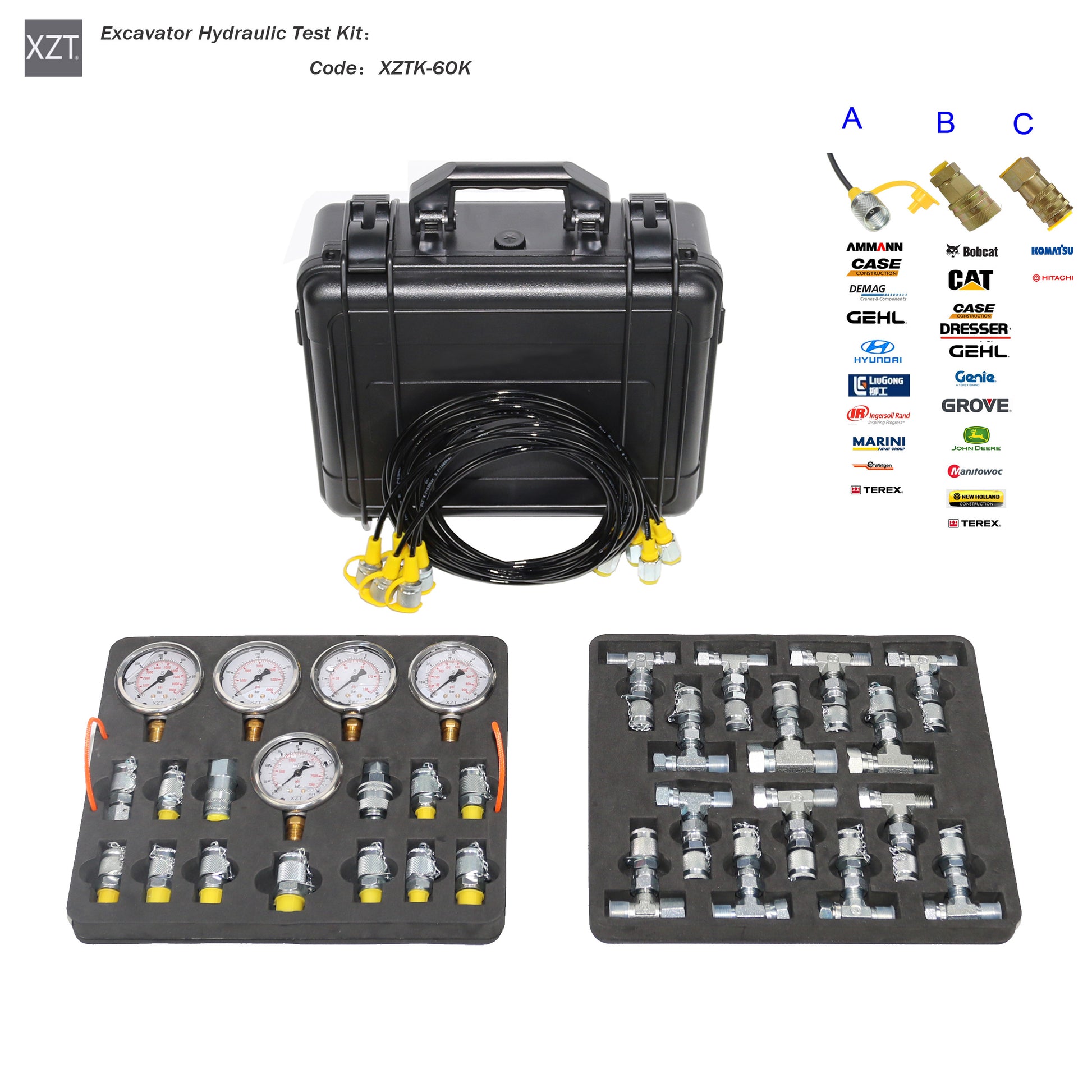

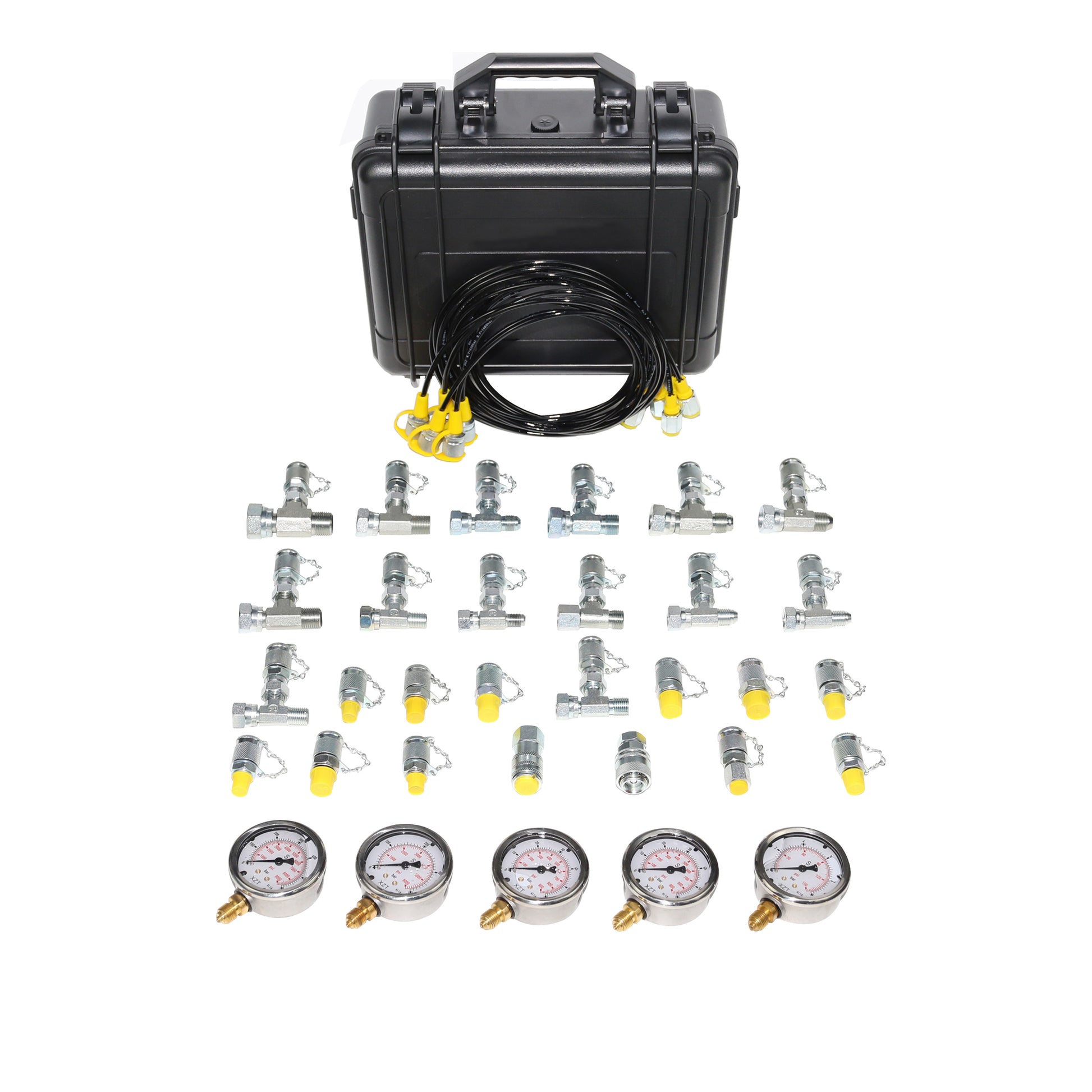

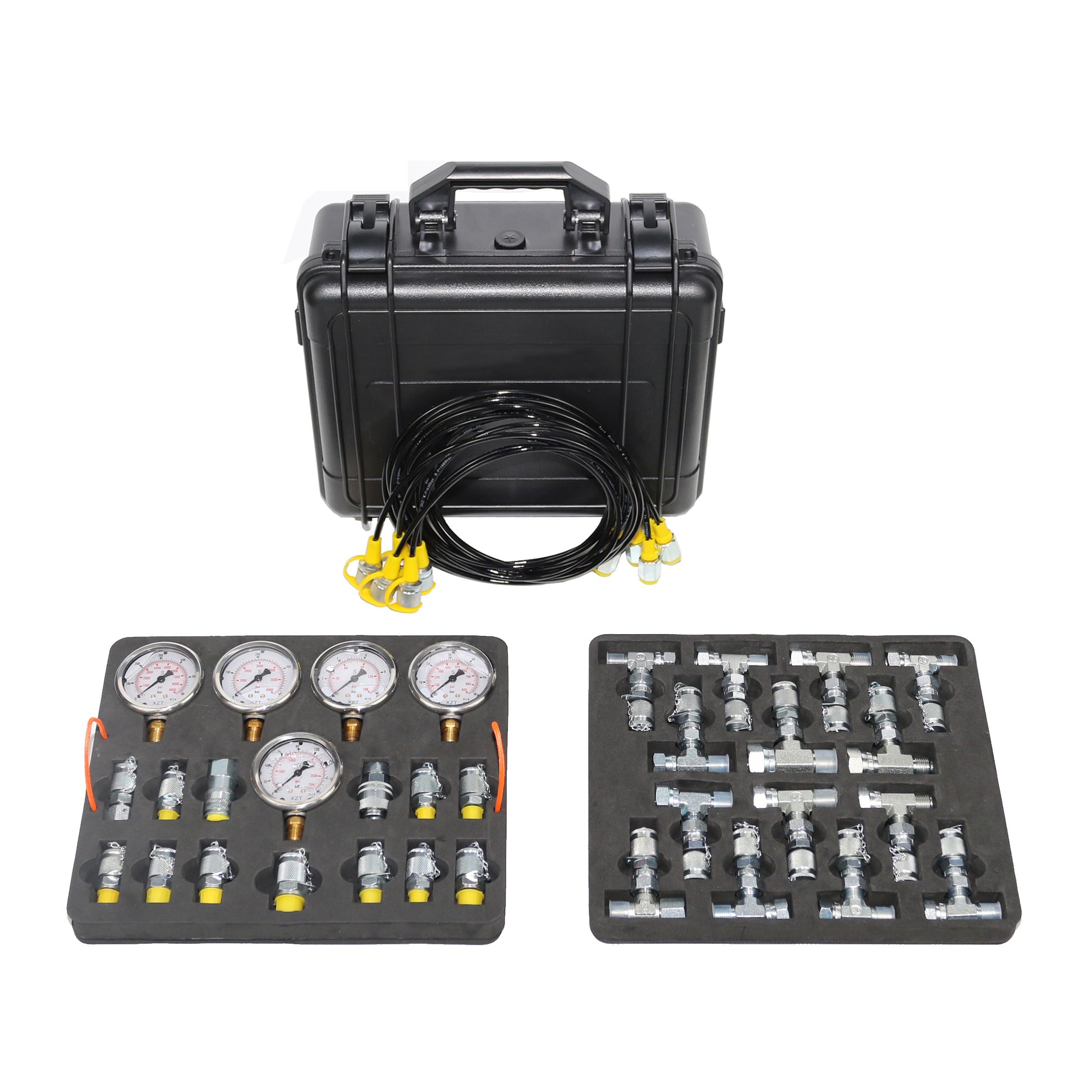

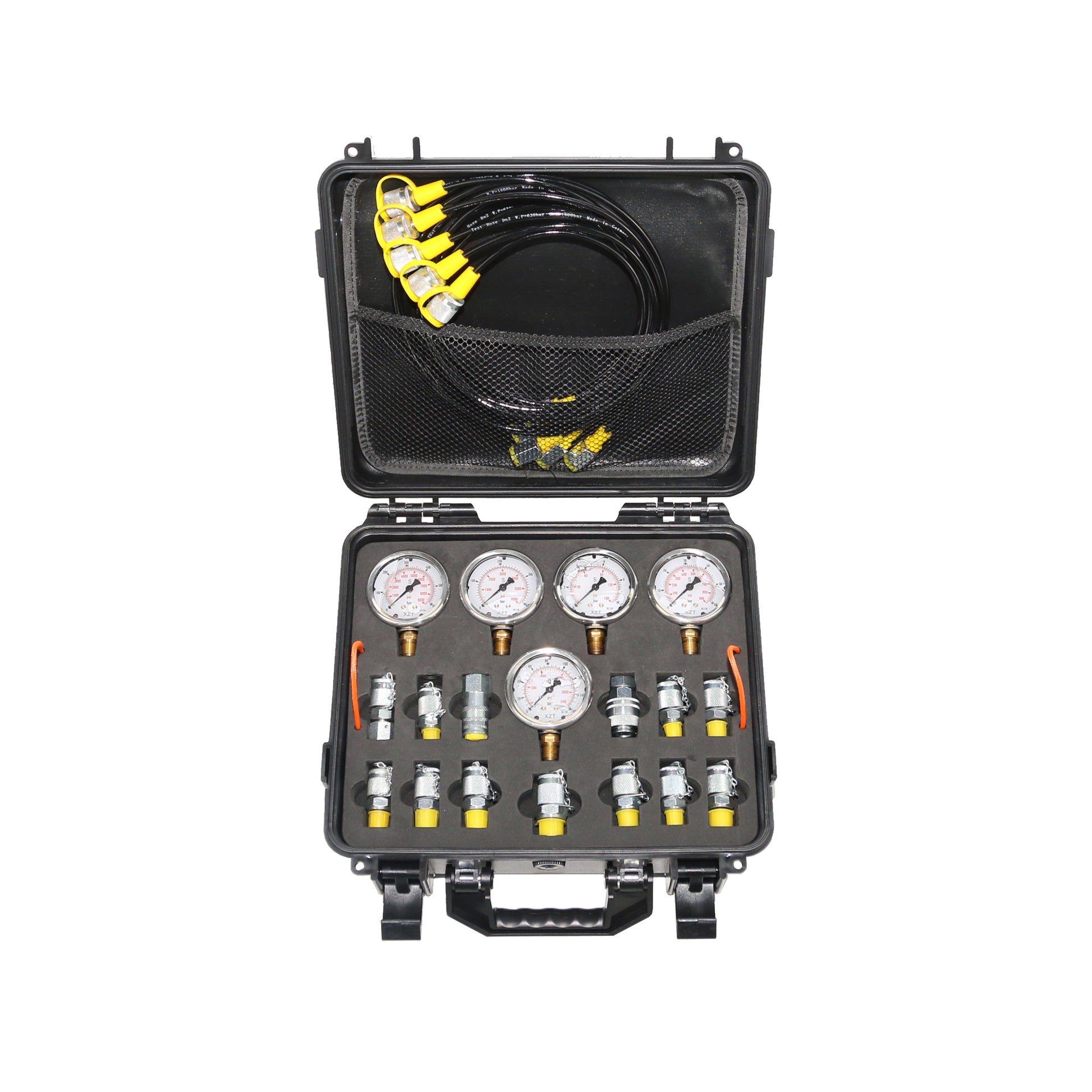

XZT -60K Excavator Repair Kit Contain Follow items:
Contain: Description -------------------------- Quantity: PCS

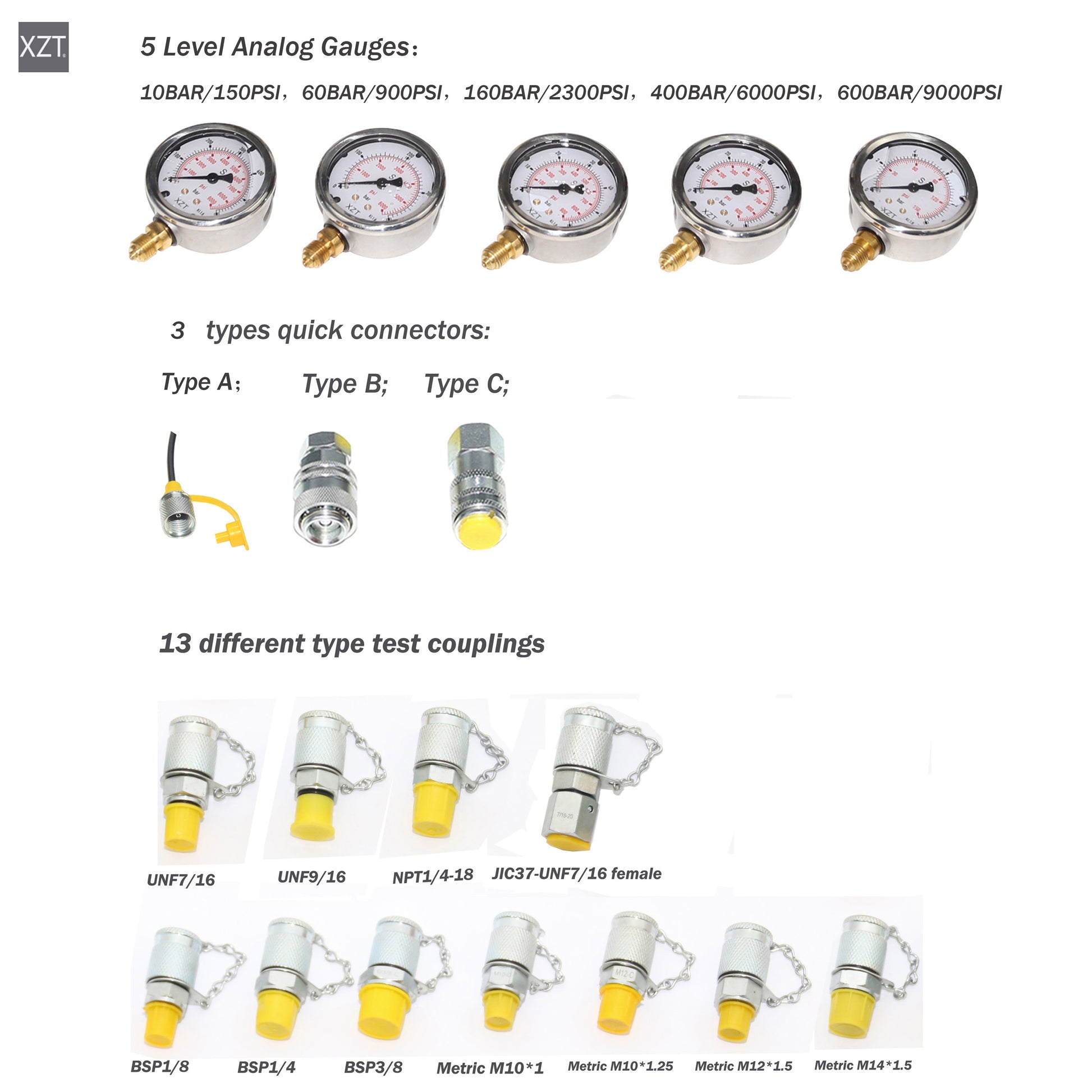

Analog Pressure Gauge
1 Analog Pressurel gauge:Ø63mm~10BAR/150PSI/1MPa *1
2 Analog Pressurel gauge:Ø63mm~60BAR/900PSI/6MPa *1
3 Analog Pressurel gauge:Ø63mm~160BAR/2300PSI/16MPa *1
4 Analog Pressurel gauge:Ø63mm~400BAR/6000PSI/40MPa *1
5 Analog Pressurel gauge:Ø63mm~600BAR/9000PSI/60MPa *1

Test Coupling
1 Test coupling:G1/8-28 *1
2 Test coupling:G1/4-19 *1
3 Test coupling:G3/8-19 *1
4 Test coupling:M10*1 *1
5 Test coupling:M10*1.25 *1
6 Test coupling:M12*1.5 *1
7 Test coupling:M14*1.5 *1
8 Test coupling:UNF7/16-20 *1
9 Test coupling:UNF9/16-18 *1
10 Test coupling:NPT1/4-18 *1
11 Test coupling:JIC37-UNF7/16 Female *1

Quick Release Coupling
1 Quick connector A M16*2 female/this connector is in end of hose2
2 Quick connector B for Catpelier/CASE/John Deere-(BSP1/8 F)
This Quick connector Compatible Parker PD Series quick couplings1
3 Quick connector C for Komatsu/HITACHI-(BSP1/4 F)1

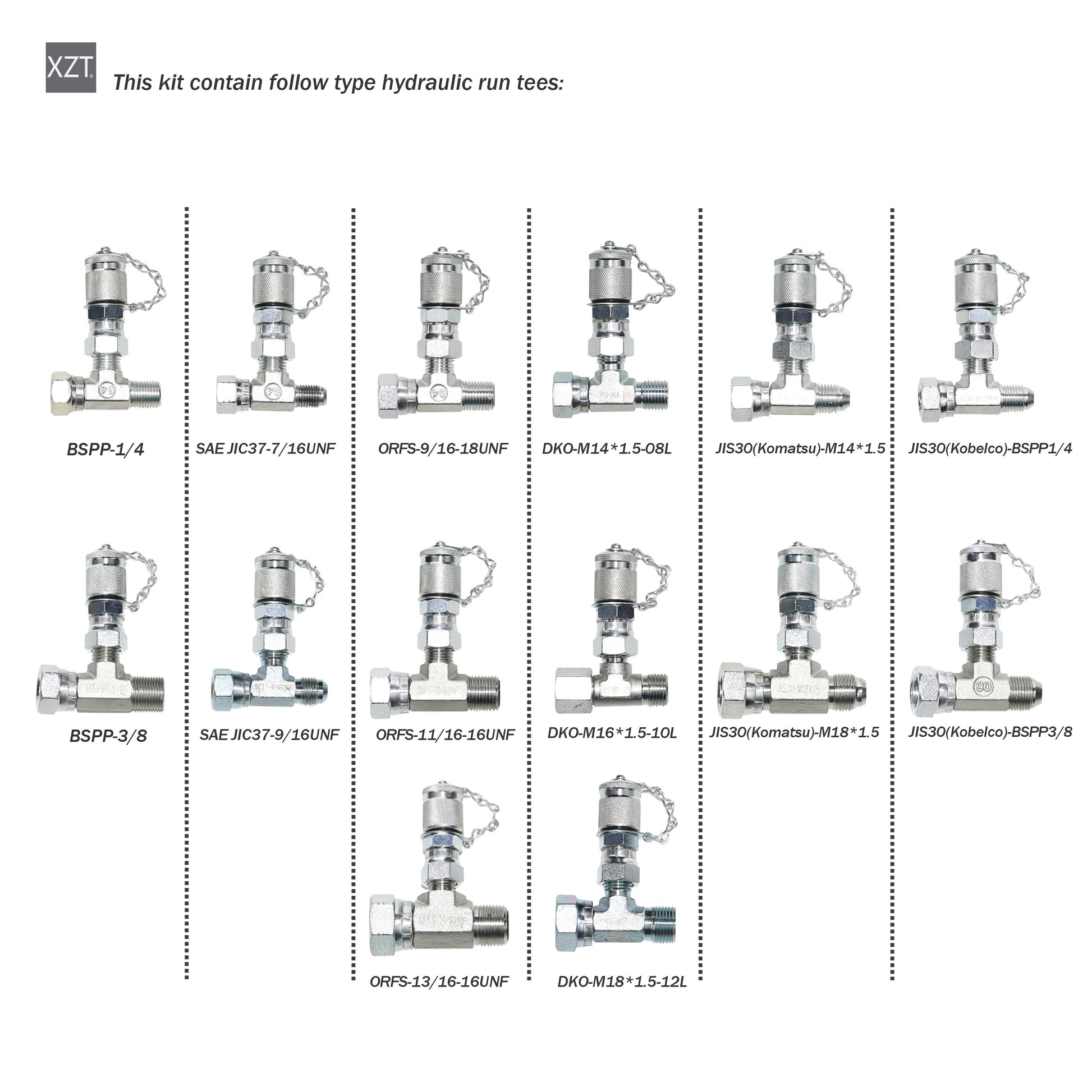

Hydraulic Run Tees
1 BSPP-1/4 *1
2 BSPP-3/8 *1
3 SAE JIC37-7/16UNF *1
4 SAE JIC37-9/16UNF *1
5 ORFS-9/16-18UNF *1
6 ORFS-11/16-16UNF *1
7 ORFS-13/16-16UNF *1
8 DKO-M14*1.5-08L *1
9 DKO-M16*1.5-10L *1
10 DKO-M18*1.5-12L *1
11 JIS30(Komatsu)-M14*1.5 *1
12 JIS30(Komatsu)--M18*1.5 *1
13 JIS30(Kobelco)-BSPP1/4 *1
14 JIS30(Kobelco)-BSPP3/8 *1

Materials

Shipping & Returns

Free Shipping for All Items

Returns:30 day refund|Buyer pays for return postage
